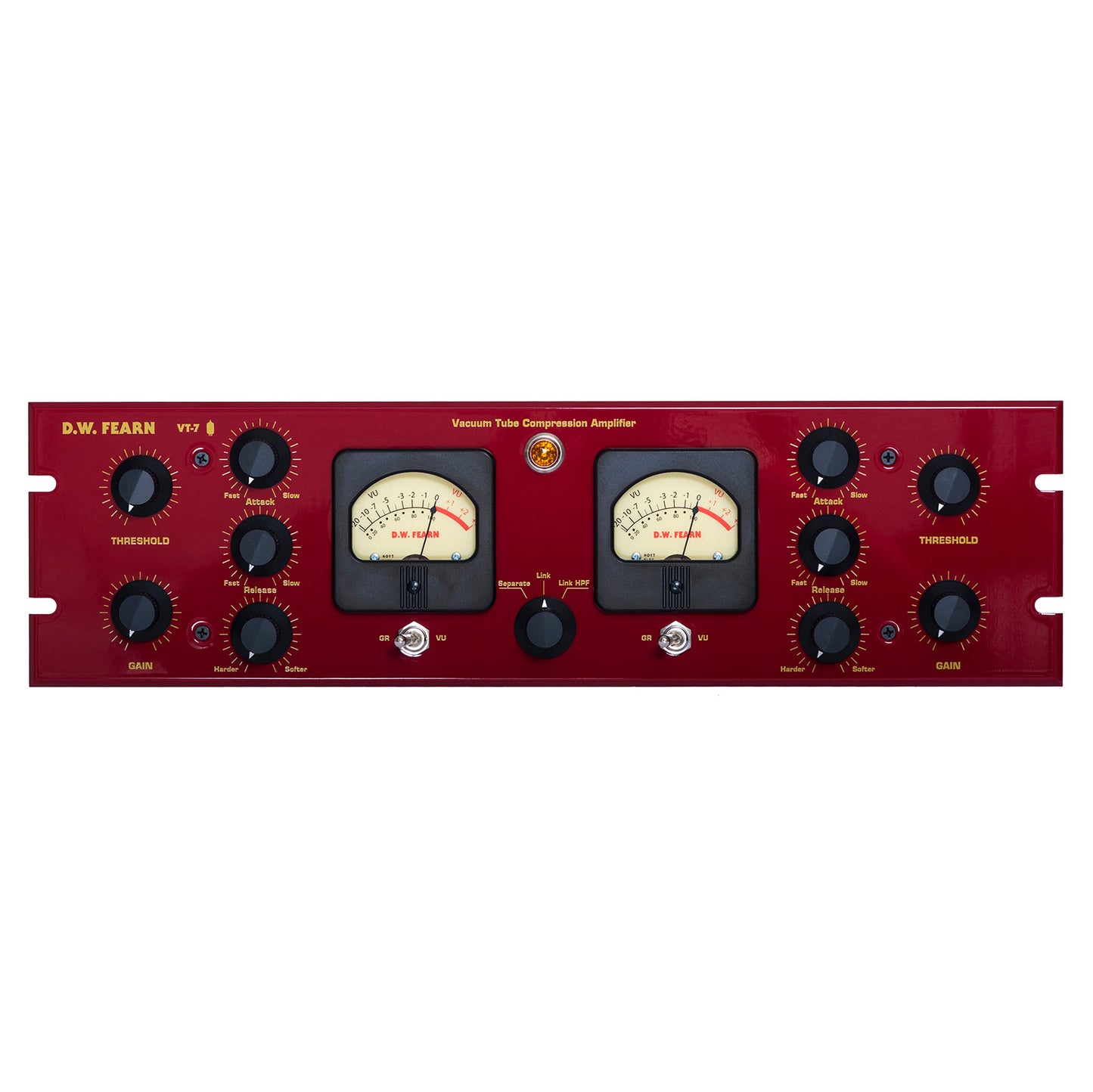

DW Fearn VT 7

Specifications

• Input 600 ohm source (nominal) balanced or unbalanced
• Input Load Impedance 32k ohms, transformer balanced bridging
• Nominal Input Level +4 dBm
• Maximum Input Level @ 20 cps +25 dBm
• Gain unity to +15dB
• Frequency Response ± 0.2 dB 20 cps to 20 kc ± 0.5 dB 11 cps to 28 kc -3 dB @ 0.5 cps & 65 kc
• THD + Noise <0.05% 20 cps to 20 kc
• Signal to Noise Ratio 78 dB minimum
• Output low-Z, transformer balanced
• Output source impedance 115 ohms
• Maximum Output Level +22 dBm into bridging input balanced or unbalanced
• Gain Reduction Range 0 to 20dB
• Power Requirements 120 or 220 VAC 50/60Hz, 85 W
• Dimensions 19” (48.26cm) W 5.25” (13.34cm) H 13” (22.9cm) D
• Weight 22 lbs (9.55 kg)
