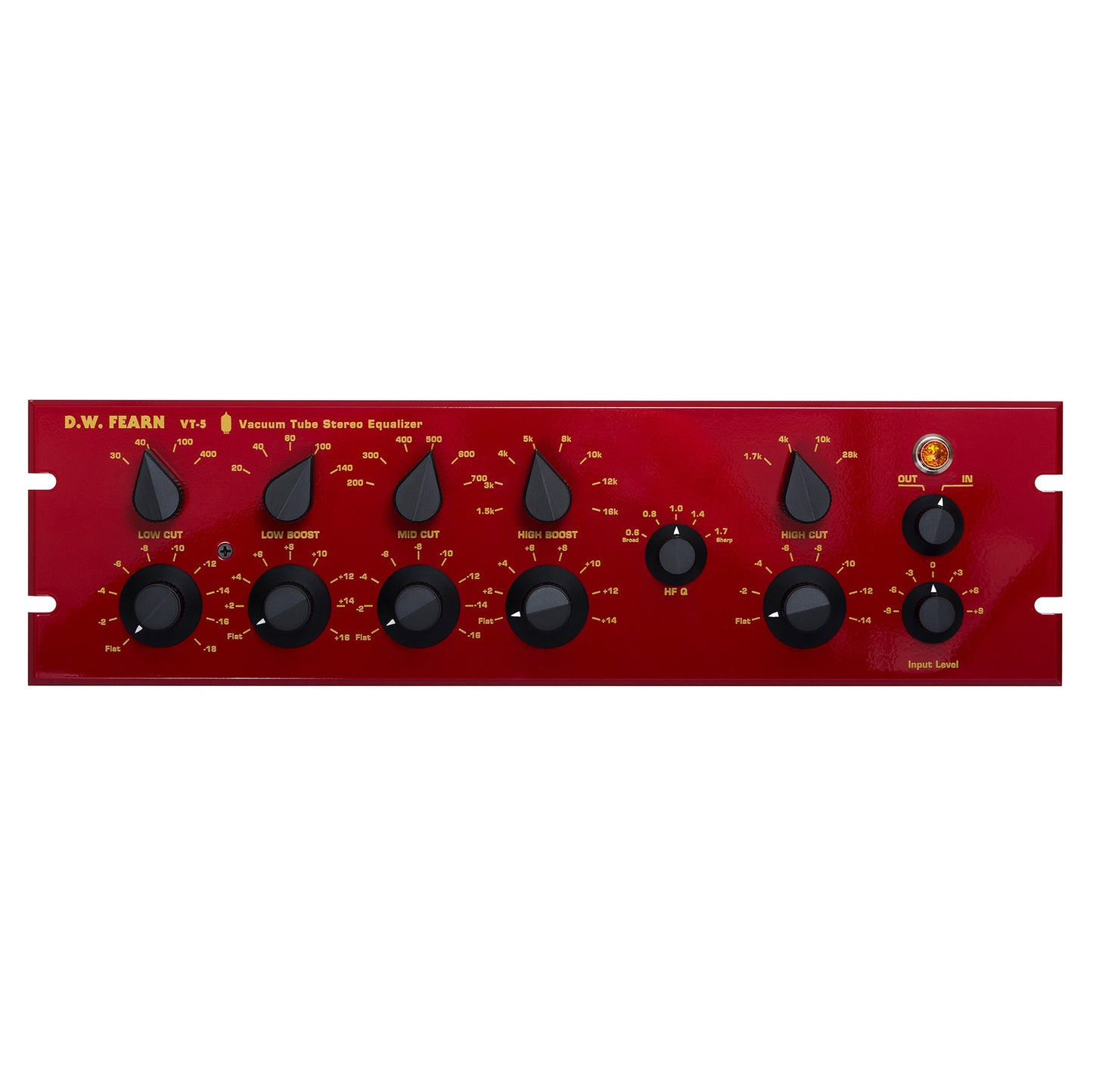

DW Fearn VT 5

Specifications

• Input 600 ohms
• Input Load Impedance 40k ohms
• Minimum Input Level -20 dBm nominal
• Maximum Input Level @ 20 cps +25 dB 0 dB
• Gain ± 0.5 dB 20 cps to 20 kc -3dB@0.5cps&80 kc
• Frequency Response <0.10% 20 cps to 20 kc
• Intermodulation Distortion SMPTE: <0.80%
• Signal to Noise Ratio 82 dB minimum low-Z, transformer balanced
• Output +22 dBm unterminated
• Maximum Output Level 120 or 220 VAC 50/60Hz, 85 W
• Dimensions 19” (48.26cm) W 5.25” (13.34cm) H 9” (22.86cm) D (VT-2 13” 22.9cm)
• Weight 20 lbs (9.1 kg)
