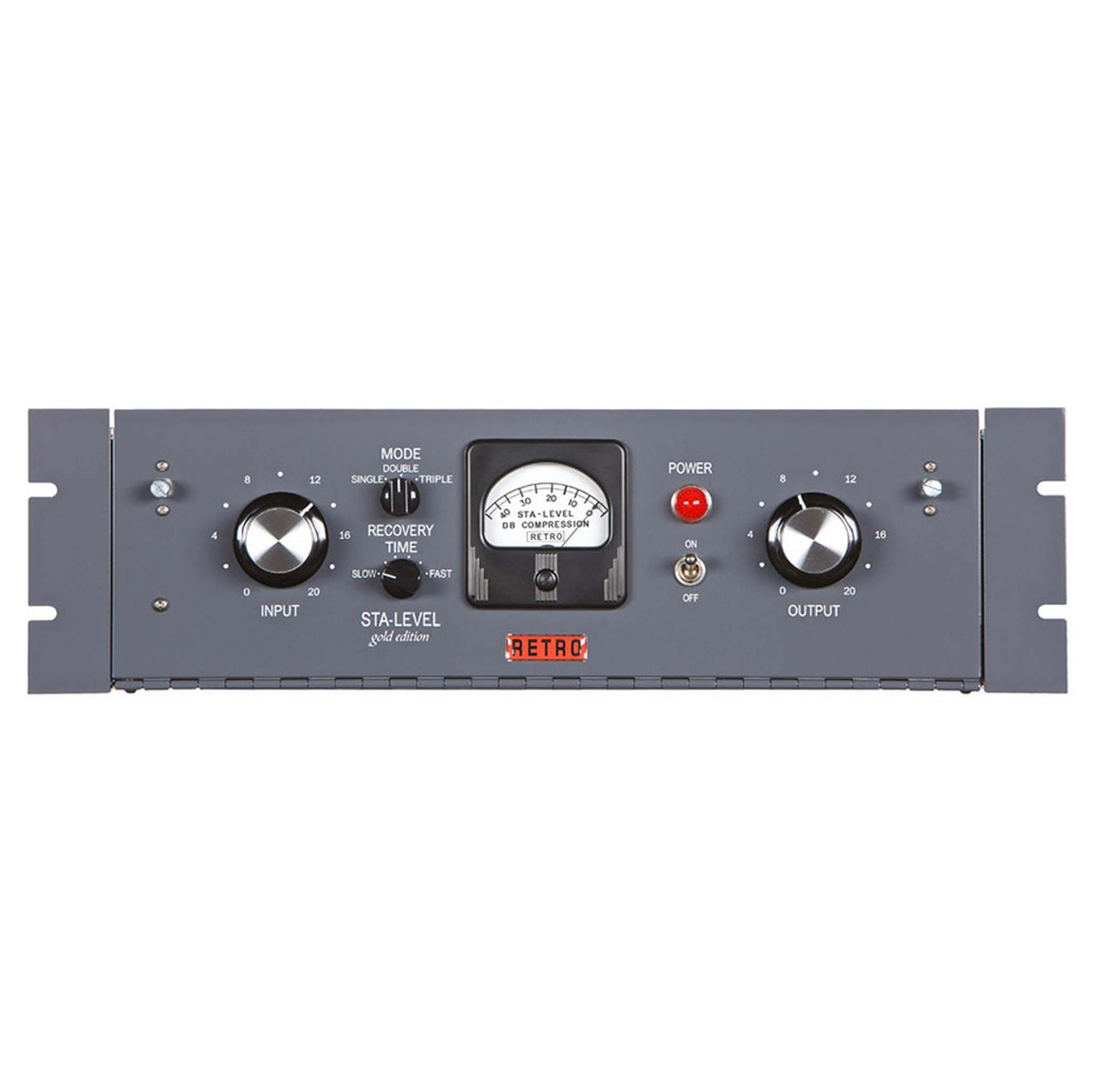

Retro Instruments STA-Level

Specifications

• Gain Reduction Threshold: Continuously adjustable from +24dBm to -20dBm
• Available Gain Reduction: 40dB
• Total System Gain: 35dB (with standard input and output pads)
• Distortion: 1 percent or less from 0-30 dB gain reduction
• Frequency Response: ± .25dB from 20-20,000 Hz
• Noise: -70dB or better referenced to gain reduction threshold
• Output Level: Continuously adjustable from -40 dBm to +18 dBm
• Input Impedance: Accepts low impedance active or transformer balanced 0-600 Ohms
• Output Impedance: 600 Ohm transformer balanced, terminated and resistive pad coupled
• Tube Complement: 2-6BA6, 1-12AT7, 2-6V6GT, 1-6AL5, 1-OB2, 1-5Y3GT
• Power Requirements: Three prong IEC - Switchable 115-230 VAC - 50/60 Hz
• Mounting Requirements: 3U metal rack 5.25" high, 19" wide, 8" deep
