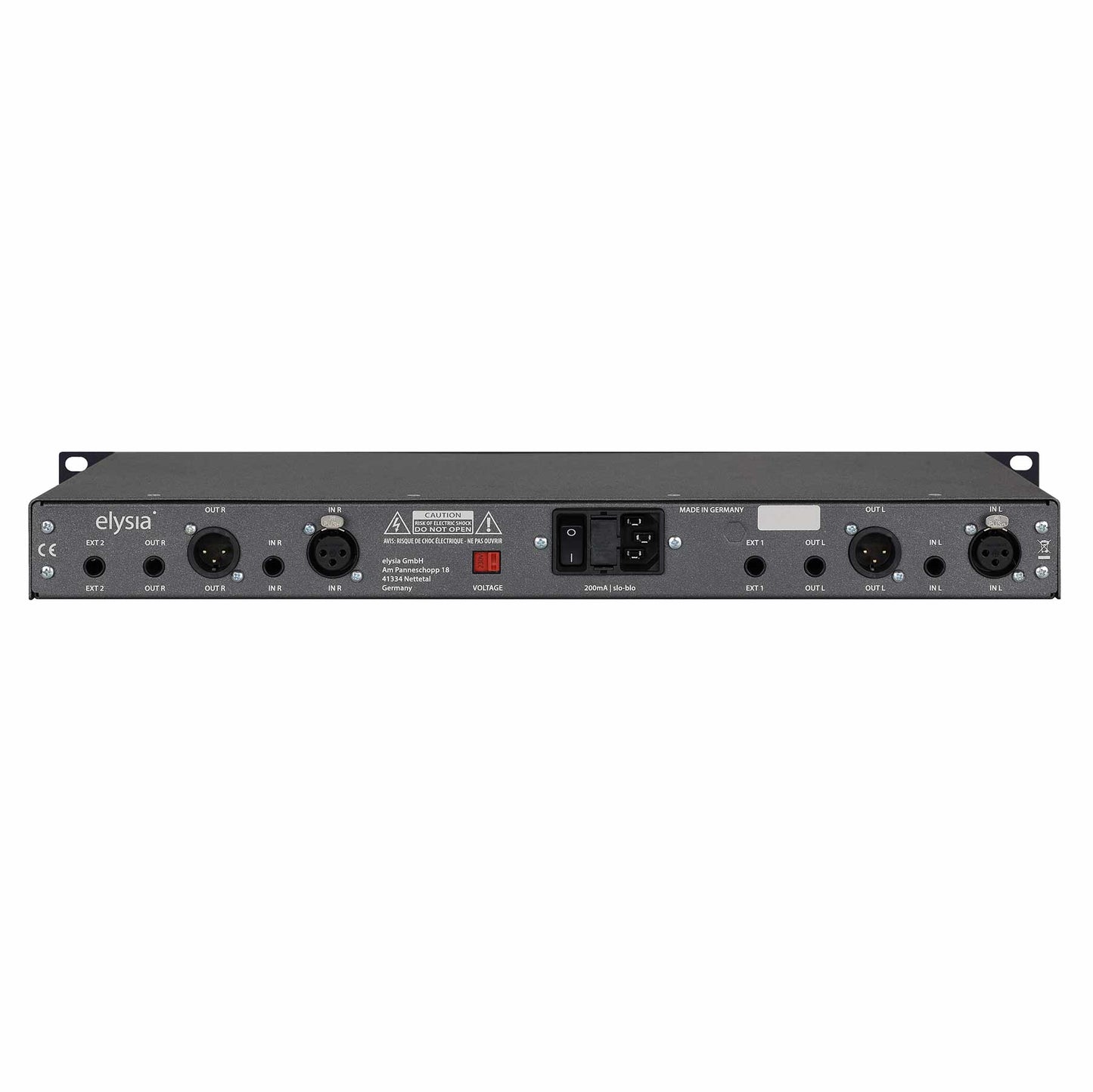

Elysia Xfilter

Stereo Equalizer

• 100% Class-A topology
• True stereo link
• High and low shelf filter
• Resonance-capable highpass and lowpass filter
• Two parametric mids plus switchable Q
• Additional passive high band
• Stepped potentiometer (computer-selected)
• Special low tolerance capacitors
• Continuous mass shield
• Frequency range:
• Noise: 20 Hz - 20 kHz -98 dBu
• Dynamic range: 20 Hz - 22 kHz (-120 dB)
• Maximum level input/output: +21 dBU
• Input impedance 10 kO
• Output Impedance 68 O
• Durable and lightweight all-aluminium body
• Inputs / outputs: XLR and 6.3mm TRS
• Format: 19" 1 U
• Weight: 2 kg
• Made in Germany
