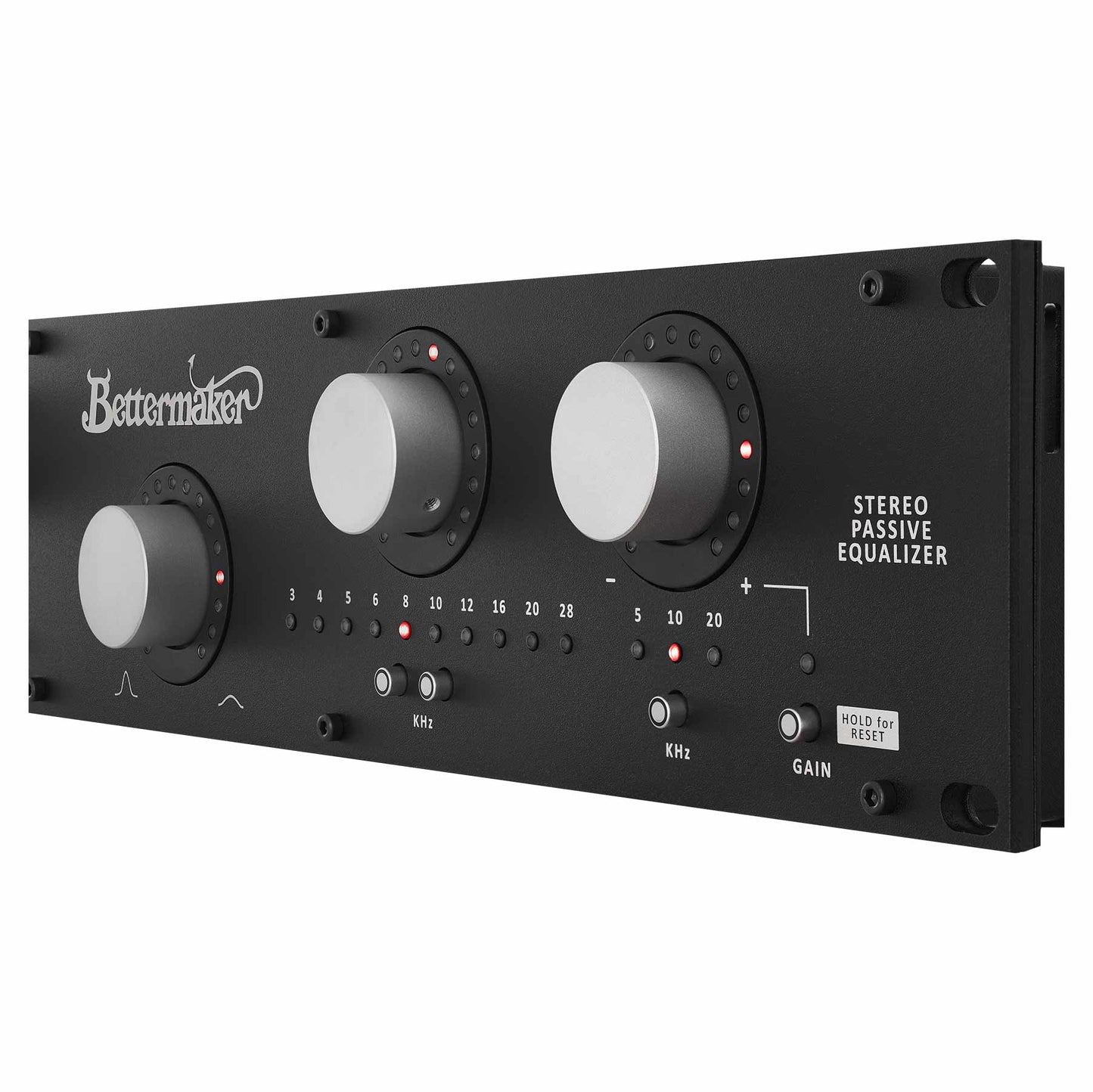

Bettermaker Stereo Passive Equalizer

Technical specification (all filters enabled, set flat):

- Digitally controlled analog Stereo Passive Equalizer with transformer output and vacuum tube drive stage.
- Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
- Maximum output level: +22 dBu
- Output impedance: 120Ω (30Ω with HEAT activated - transformer balanced)
- Nominal audio level: +4 dBuMax LF boost: 15 dB (set to 100 Hz)
- Max LF cut: 16 dB (set to 100 Hz)
- Max HF boost: 18 dB (all frequencies)
- Low boost/cut frequencies: 20, 30, 60, 100 Hz
- High boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28 kHz
- High cut frequencies: 5, 10, 20 kHz
- Control Resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth) & 34 steps (Hi Cut)
- Control Resolution in Quantize mode: 17 steps for all controls
- Output gain: +/- 8 dB (0.1 dB resolution; 1 dB in Quantize mode)
- Unit height: 2U
- Unit depth: 140 mm
- Unit weight without cables and PSU: 2.7kg
- AC power consumption: 18W (2W in standby, with included 100-240VAC power adapter)
- Shipping weight & dimensions: 3.5kg, 60x30x20 cm
