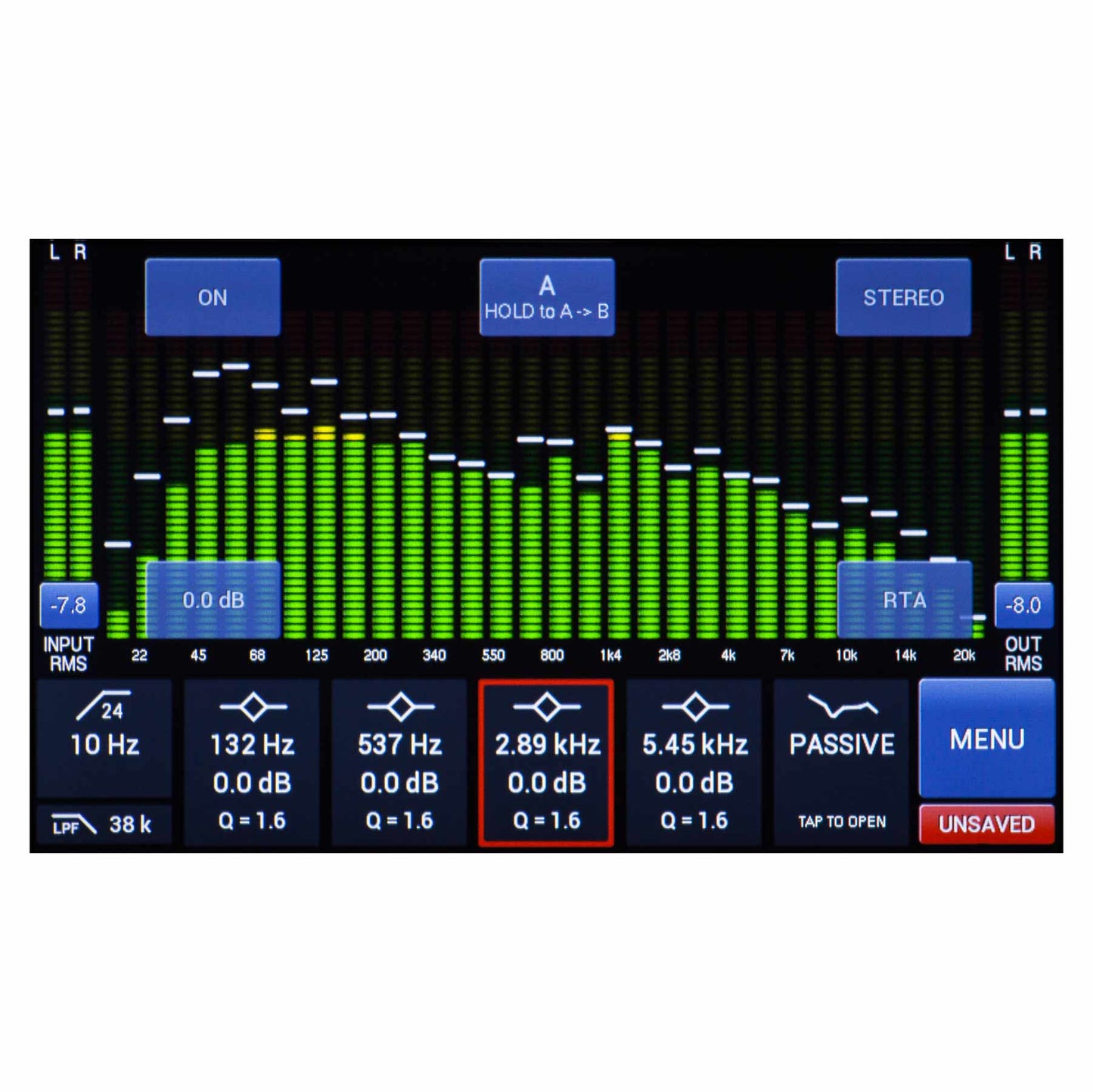

Bettermaker Mastering Equalizer

Technical specification (all filters enabled, set flat):

– Frequency response 20Hz to 20kHz (+/- 0.2 dB)
– Dynamic range: 102dB (+23dBu, 22kHz BW)
– THD+N: 0.03% @ +4 dBu, 0.06% @ +18 dBu, 20 kHz BW
– CMRR: max 85 dB @ 3 kHz, min 52 dB @ 20Hz, 20 kHz BW
– Crosstalk: min -100 dB @ 30Hz, max -65 dB @ 20kHz, +18 dBu, 20 kHz BW
– balanced stereo input (XLR), 23dBu max input level (THD < 0.2%)
– balanced stereo output (XLR), 23dBu max output level (THD < 0.2%)
– Operating Level: +4dBu
– Input impedance (differential): 48kΩ (for balanced signal)
– Output Impedance: 50Ω + 50Ω (electronically balanced)
– 2U enclosure, 230mm deep
– 115/230V switch
– advanced linear power supply with toroidal AC mains transformer
– Maximum power consumption: 20W
– Shipping weight: 5.5 kg, 62x37x21 cm
