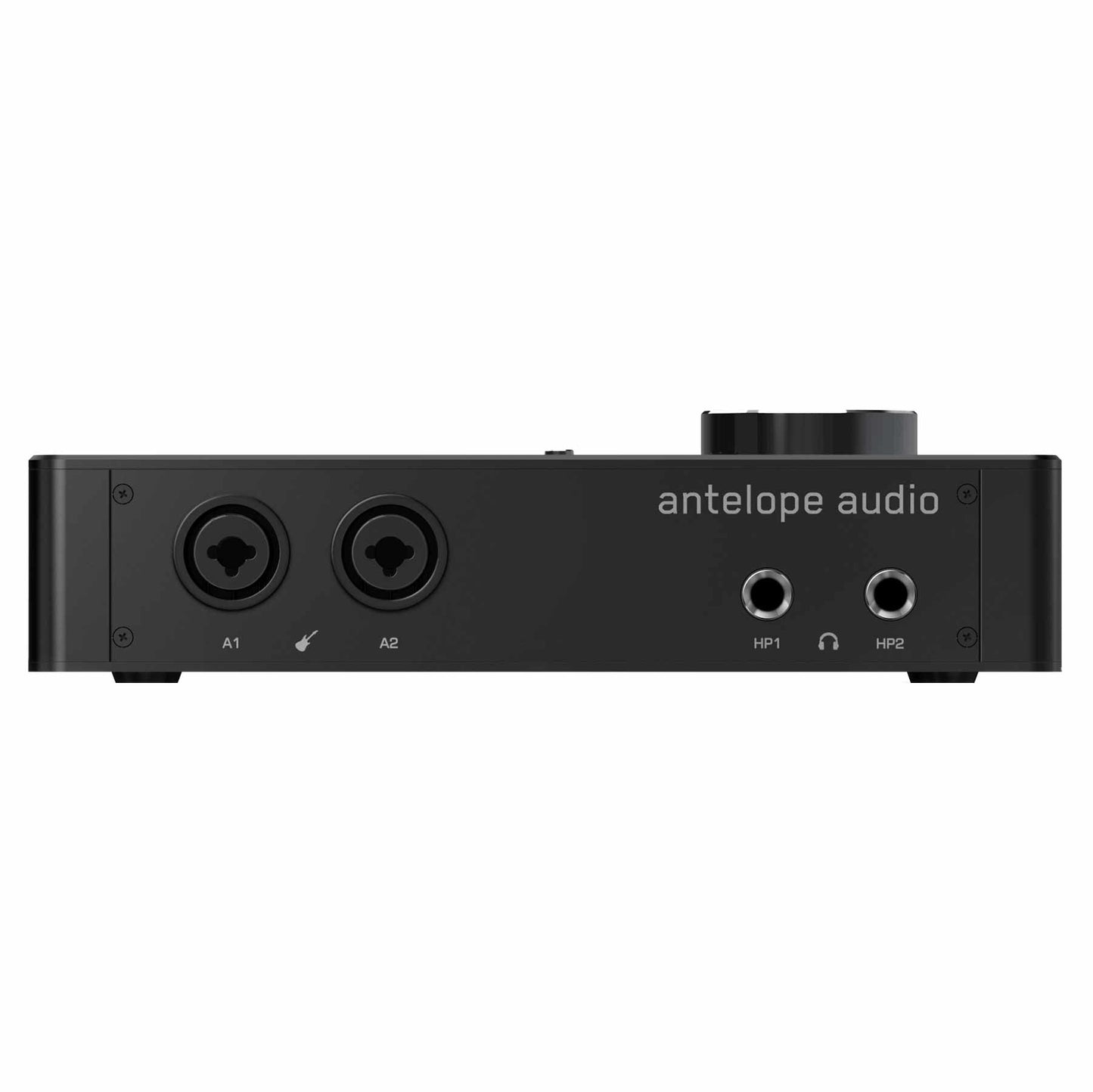

Antelope Zen Quadro Synergy Core

Specifications:

• Analogue Inputs:
  - 2 x Mic / Line Inputs (DC-Coupled)
  - 2 x Mic / Line / Hi-Z Inputs (DC-Coupled)
• Analog Outputs:
  - 2 x Monitor Out on TRS jacks, +20 dBu max (DC-Coupled)
  - 2 x Line Out on TRS jacks, +20 dBu max (DC-Coupled)
  - 2 x Stereo Headphone Outputs
• Mic Preamp:
  - EIN: -128 dBu (A-weighted)
  - Max input: +20 dBu
  - Max Gain: 75 dB
• A/D Converter:
  - Dynamic Range: 122 dB
  - THD + N: -116 dB
• D/A Monitor Converter:
  - Dynamic Range: 130 dB
  - THD + N: -115 dB
• D/A Converter (Line Out):
  - Dynamic Range: 130 dB
  - THD + N: -115 dB
• Digital Inputs:
  - 1 x ADAT input (up to 8ch @ 44.1/48 kHz)
  - 1 x S/PDIF (2ch.)
• Digital Outputs: 1 x S/PDIF (2ch.)
• USB 1:
  - USB 2.0 Type-C connector
  - 16 channels of playback and recording, 24-bit / 192kHz
  - Compatible with Windows and macOS
• USB 2:
  - USB 2.0 Type-C connector
  - 2 channels of playback and recording, 24-bit / 192kHz
  - Supports reverse charging for mobile devices
  - Compatible with Windows, macOS, Android* and iOS* (USB-C) devices
• Clocking System:
  - 4th Generation Acoustically Focused Clocking
  - 64-bit DDS
  - Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• Dimensions:
  - Weight (Approx): 0.9 kg/ 1.98 lbs
  - Width: 210 mm / 8.2”
  - Height: 58 mm / 2.3”
  - Depth: 136 mm /5.3”
