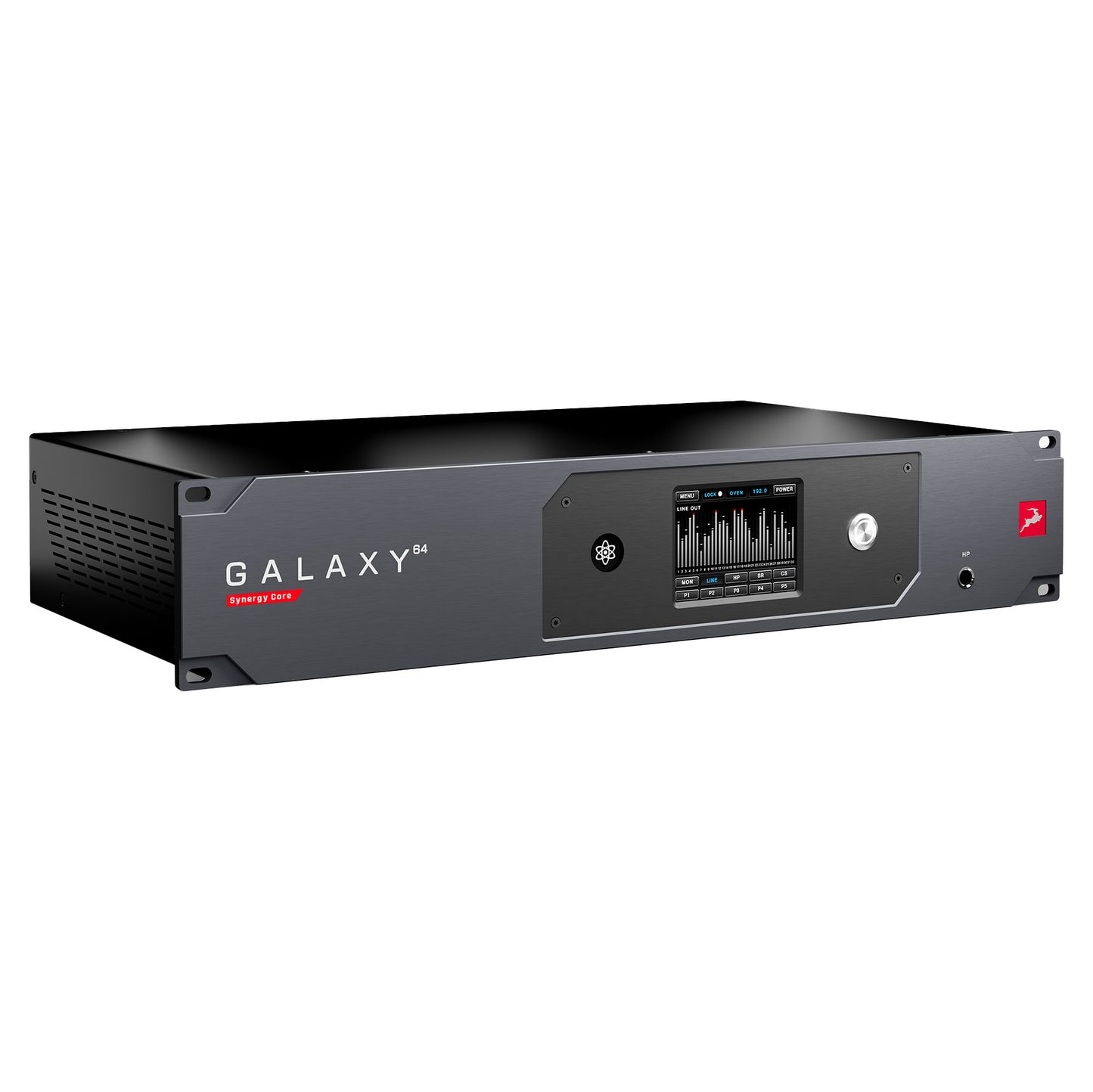

Antelope Galaxy 64 Synergy Core

Technical Specifications

A/D Line Input

• Input Connection: 8 × D-Sub 25-pin, DC-Coupled with AC/DC coupling switch (TASCAM Standard)
• I/O Channel Count: 64 Channels
• Input Level Trim: 12 dBu to 22 dBu
• Dynamic Range: 124 dB
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• THD+N (A): -112 dB
• Impedance Load: 11.2 kOhms

D/A Line Output

• Output Connection: 8 × D-sub 25-pin, DC-Coupled (TASCAM Standard)
• I/O Channel Count: 64 Channels
• Output level: -inf to 24dBu // 1 dB step
• Dynamic Range: 128 dB
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• THD+N (A): -115 dB
• Impedance Load: 56 Ohms

D/A Monitor Output

• Output Connection: 2 × ¼” 6.35 mm Jack (3 pin)
• Channel Count: 2 Channels
• Output level: -inf to 22dBu in steps of 1 dB
• Dynamic Range: 130 dB
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• THD+N (A): -115 dB
• Impedance Load: 56 Ohms

Headphone Output

• Output Connection: 1 × ¼” 6.35 mm Jack (3 pin)
• Output Level: 22dBu
• Dynamic Range: 122 dB
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• THD+N (A): -115 dB
• Impedance Load: 120 Ohms

Digital Interface – Thunderbolt

• Interface Connection: 2 × Thunderbolt™ 3 Ports
• I/O Channel Count: 64 Channels
• Daisy-Chain: Supported
• Remote Control: Supported, (Over USB Type-C)
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• Control Panel Support: Supported

Digital Interface - Dante

• Interface Connection: 2 × RJ-45 Ports, I/O
• I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
• Redundancy: Supported
• Connectivity: Dual Ethernet, switched or redundant
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM

Digital Interface - HDX

• Interface Connection: 4 × HDX Ports
• I/O Channel Count: 128 Channels (32 Per Port)
• Primary/Secondary Ports: 4 Primary
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
• Delay Compensation: Supported
• Manual Delay Compensation: Supported, (up to 128 samples)
• Session I/O Support: Yes (16 × 16)

Digital Interface - MADI

• Interface Connection: 2 × Optical SC Connectors
• MADI Mode: Dual Wire, Optical
• SMUX: Supported
• MADI Protocol: AES10-2003
• I/O Channel Count: 64 Channels @44.1/48.0 kHz
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM

Digital Interface - S/PDIF

• IInterface Connection: 2 × RCA Connectors
• S/PDIF SRC: Supported
• I/O Channel Count: 2 Channels
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM

Digital Interface - AES/EBU

• Interface Connection: 2 × XLR Connectors
• AES Mode: AES/EBU
• I/O Channel Count: 2 Channels
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM

Clocking System

• Clocking Technology: 4th Generation Acoustically Focused Clocking, 64-Bit Jitter Management DDS
• Word Clock Input: 1 × Input @ 75 Ohms 3Vpp on BNC
• Word Clock Output: 6 × Output @ 75 Ohms 3Vpp on BNC
• Loop-Sync Input: 1 × Input @ 75 Ohms 3Vpp on BNC
• Loop-Sync Output: 1 × Output @ 75 Ohms 3Vpp on BNC
• 10M Atomic Reference Input: 1 × Input @ 75 Ohms 1Vpp on BNC
• Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
