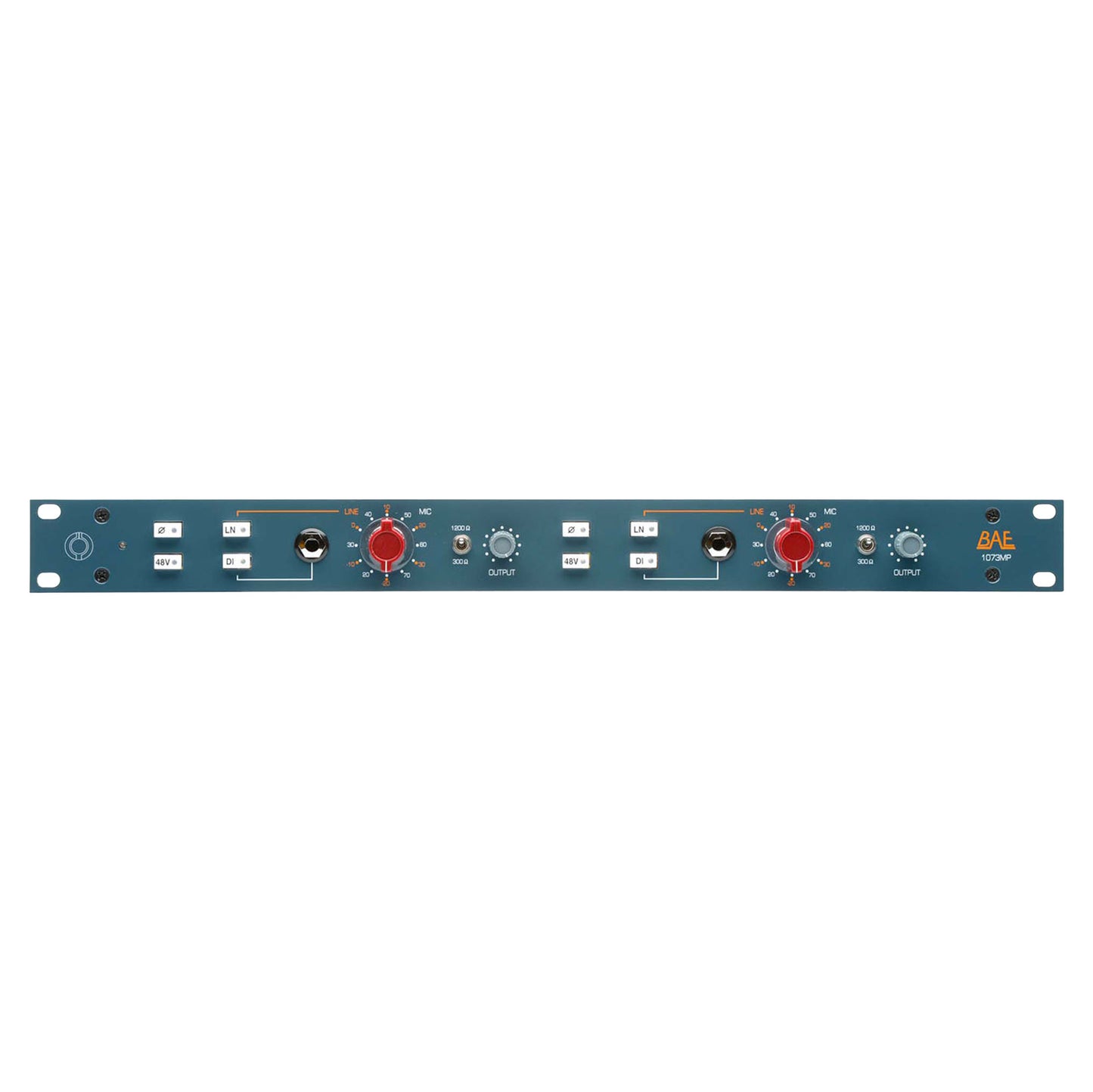

BAE 1073 MP+PSU

Features:

• All Class A, hand-wired transformer-coupled
• 80 dB of gain
• St. Ives (Carnhill) transformers, Elma switches and Canford wire
• Hi-Z direct inputs on the front panel
• 48 V phantom power on the front panel
• Balanced mic input, line input and balanced +4 output from XLR connectors on the rear of the module
• Output level control functions as fader when going straight to tape
• Oversize power supply provides four times the current needed for optimum sound quality

Specifications:

• High Frequency: ±16 dB fixed frequency shelving at 12 kHz
• Low Frequency: ±16 dB shelving with selectable frequencies of 35 Hz, 60 Hz, 110 Hz & 220 Hz
• Mid Range: ±18 dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz & 7.2 kHz
• High Pass Filter: 18 dB per octave slope, switchable between 50 Hz, 80 Hz, 160 Hz & 300 Hz
